About Dune
New to CSA’s 4×4 wheel range, Dune’s distinctive heavy-duty look has made it an instant hit with 4WDers.

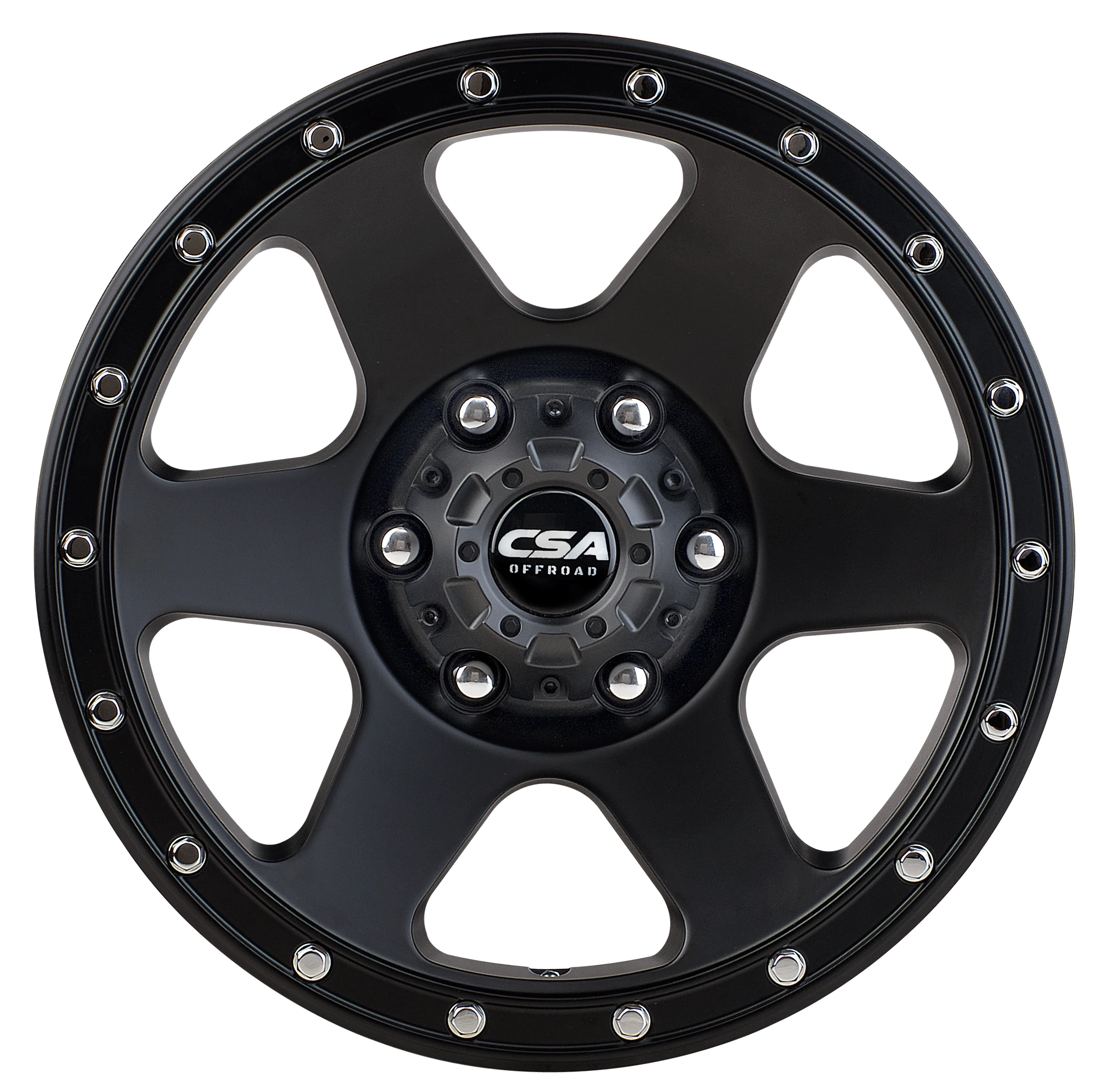

The CSA Dune is a 6-spoke design that just screams tough. Dune features a deep-dish appearance and chrome hex bolts that highlight the rim edge.
Dune features a high-tech satin black baked enamel finish, which means it’s easy to clean and highly resistant to salt spray and colour etching, making it the ideal wheel for off-road and commercial environments.
Dune’s timeless, chunky design will toughen up the look of any 4×4 – old or new.
Dune will not only stand up to the elements, it’ll carry a load as well, with most of the range being load rated to 1250kg (1150kg for the 16×8 variant), making it a great choice for vehicles being GVM upgraded.
Dune is available in a range of sizes, from 16×8 through to 20×9 and will fit a wide range of 4×4 vehicles as well as some 4×2 vehicles and SUVs.
Specs & Sizing
Large Centre Cap Options
| SIZE | PCD | OFFSET | MAX LOAD | FINISH | PART NO. |
|---|---|---|---|---|---|
| 17×9 | 6/139.7 | 20 POS | 1250 KG | Satin Black | 311-790P20-67A |
| 17×9 | 6/139.7 | 35 POS | 1250 KG | Satin Black | 311-790P35-67A |
| 18X9 | 6/139.7 | 20 POS | 1250 KG | Satin Black | 311-890P20-67A |
| 18X9 | 6/139.7 | 35 POS | 1250 KG | Satin Black | 311-890P35-67A |
| 20×9 | 5/150 | 35 POS | 1250 KG | Satin Black | 311-A90P35-515A |
Small Centre Cap Options
| SIZE | PCD | OFFSET | MAX LOAD | FINISH | PART NO. |
|---|---|---|---|---|---|
| 16×8 | 5/114.3 & 5/120 | 35 POS | 1150 KG | Satin Black | 311-680P35-5HA |
| 18×9 | 5/114.3 & 5/120 | 35 POS | 1250 KG | Satin Black | 311-890P35-5HA |
| 18×9 | 6/114.3 | 35 POS | 1250 KG | Satin Black | 311-890P35-64A |
Fitment Guide
Dune is available in rim sizes and offsets that will work for most late model 4×4 utes and wagons, along with a number of 4×2 versions of those vehicles and some SUVs. You can confirm fitment suitability for your vehicle by using this CSA FITMENT GUIDE or contacting the CSA Sales Team in your state.
